BW-SK840A Multi function Semi-automatic hard cover case maker

FOB Reference Price:Get Latest Price
1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Hard Cover Case Maker
Computerized:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
BW-SK840A
Voltage:
220V
Dimension(L*W*H):
1650*1460*1110mm
Weight:
500kg
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Supplier:
Boway
Supply Ability
Supply Ability:
50 Unit/Units per Month
Packaging & Delivery
Packaging Details
Professional Packing,please confirm with our sales manager.Thank you!
Port
Ningbo or Shanghai
Lead Time :
In 20 days.

+BANNER(780

******The pricture and specifications are subject to change without prior notice. ******

******Any question, please confirm with our sales manager.******

Welcome  to  Boway

Core Competence

We provide more than 300 kinds of office equipment for your need

(You may click the following picture to see more)


How  to  Choose  Your  Right  Items?

Product Uses
Hard Cover Paper Case / Hard Cover Leather Case /  Other Materials Hard Cover Case Making .
It's a flexible, high-efficiency and affordable case maker to make different kinds of hard covers for book, album, loose-leaf book, diary, and desk calendar. Suitable for multispecies, short to medium run and wide range of materials to make hard covers.

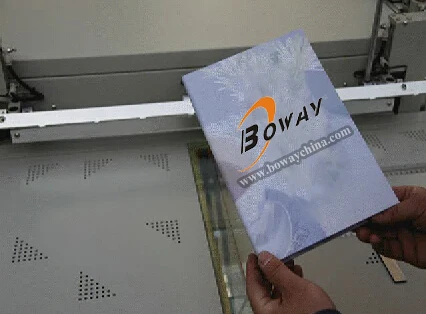

Appearance

SSK840A effect.jpg

Specification Param

SSK840A specification.jpg

Model No.

BW-SK840A

Max. size of product

840×480mm

The size of operation desk

980×466mm

Gluing width

500mm

Hardcover edge width

840mm

Thickness of the cardboard

1.5~4mm

Thickness of the cover paper

80~400g/m²

Power Supply

220V

Machine gas

0.6MPa

Machine Weight

500kg

Machine dimensions

1650×1460×1110mm

***Standard accessory: 10mm paper guide - Long.***

***Machine air source for selecting, equipment reserved Φ10mm trachea interface.***
♦ Hot gluing
Auto edge fold
♦ Program control
♦ Optaical fibre detection
Split type installation
220V power supply
Wide scope of application:
Not only suitable for the common hard cover papers, but also suitablt for the leather and other materials.
Cheaper cost:
Microthermal protein glue dry quickly, no deformation and lower cost.
Easy operation:
Reciprocating automatic edge fold system fold two edges automatically at one time.
High speed optical fibre detection control the length and position of the paper feeding accurately.
Multi-functions:
Independent homothermal impermeable herater unit can use both protein glue (hot) and white latex (cold).
Quantitative filling the water automatically and the water yield can be adjusted.
Stepless glue application speed.
Soft light reflection and center position.
Standard and three spines hard covers are available by change and add the spine guides quickly.
The corner cutter can cut four standard corners on different thickness of cardboard without adjustment.
Paper guides go up and down and controlled by pneumatic foot valve.
Easy installation:
Split type model can enter into elevator door and office door.
Glue part can be choosed to set on the Left/Right side, the standard model is on the Left side.
Equipped with high load casters, convenient to level adjusting, fixing and moving the machine.
Advantages Details

Multifunction  BW-SK840A  includes Hot gluing, Suction and Position, Corner Cutter, Automatic Edge Folder etc .

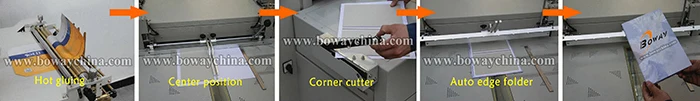

Four steps to make hard covers:

Step 1 : Hot gluing: Spread the glue on the back of the cover uniformly.

♦ High accuracy glue roller makes the glue ell-distributed.

♦ Copper alloy made glue application roller and glue reservoir make the heat conduction fast and well distributed.
♦ Quantitative water filling device fill proper amount of water according to the use conditions which avoid the glue from drying and soliding.
♦ Independent homothermal impermeable heater unit, protein glue, jelly glue and white latex can be used separately.
The thickness of the glue can be adjusted.
Step 2 : Suction and Position: Bound the cardboard and spine with cover paper.
♦ Flexible and fast to change the different version of spine guides, easy to create many fully decorated have cases.
♦ Suction assistance makes the cover material positioned accurately, and avoid the bubbles when the cover glued with cardboard.
♦ It's easy to see the spine position by soft light table with center positing line which labels the reference meshed line for variety of formates
♦ Humanized back gauge can be adjusted and fixed to ensure the same size of each finished hard cover.
Step 3 : Corner cutter: Cut four corners of the cover paper.
Step 4 : Automatic edge folding: Put the bound cardboard into the edge folder and the edges will be folded automatically.
Edges of feed direction will be folded after put the bound cardboards in to the edge folder with optical reflex detection.
 The size and position of the edge folding can be adjusted.
The folding pressure can be adjusted to adapt different thickness of the cardboards.
Finish
Package & Shipment

Trading Terms

Terms of paymentT/T, L/C, Westion Union.
Terms of tradeFOB, CFR, CIF
Mode of transportationBy Sea,  By Air
Port of shipmentShanghai or Ningbo
Rerfence date of delivery

About 15 days, Instant supply

of hot-selling products

About Shipment

Certificate of Fumigation
Certificate of Original

CO, FORM A, FORM F, FORM E etc.

Guarantee customer to import goods

at the preferential tariff rate

Certificate of Inspection
Documents Authentication



_

After-Sales Service

I. Agents Tranining

II. Warranty

We provide one-year limited warranty for all machines from the date of purchase

1. Our warranty covers only those defects which arise as a result of normal use of the product, and the bellows not apply to any:

u       Improper or inadequate maintenance

u       Misusage and mishandling

u       Damaged by a wrong voltage use

u      Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)

2. What is the repair, exchange & refund policy?

Exchange and refund only on big defective units (beyond repair).For buyers' used machines, we only can support repair service.

Repair: We provide free spare parts (just include the main board and motor) within the warranty period. Buyer should provide serial number and photos of defective machines, but buyer should pay the shipment charges and return us the broken parts.

Exchange: If you reported problem to us in one month on arrival of the machine, we accept the exchange. Buyer needs pay the ship back sea freight and the sea freight for new machine.

Refund: If you reported problem to us in one week on arrival of machines, we accept the refund, but we only refund you the payment after receiving the returned goods.

3. What about when one year warranty over time?

We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.

4. How to support you when you purchase our machine in first time?

When you meet the problem of our machine under the situation that you are not familiar with our machines.

Do not worry, we can offer:

u        User Manual in English

u        Operation Video

u         Support on-line

u        You can send your technician to our factory to attend the skill training.

Customers  and  Us

()FAQ

1.What’s the product range?

   Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, UV coator machine and some small office equipment.

2.Are you a manufacture?

   Yes, we are in Hangzhou which middle of shanghai and Ningbo

3.What is the minimum quantity for order?

    5 pcs or 10000 USD for order.

4.Do you have stock product to sell?

    Maybe , It’s depend on which machine ,you like?

5.Do you inspect the finished products?

    Yes, Each step of production products will be camed out inspection by QC department before shipping.

6.How do you ship the finished products?

    By Sea

   By Plane

   By courier, TNT , DHL, Fedex, UPS Etc

7.What’s the Payment term?

    Payment term: T/T before shipment.

    We accept payment via the Paypal /Western union/TT, you can choose as you like.

8.What’s the delivery time?

    Within 15 days after get the payment
