HSC-568II-30T automatic worktable Hot foil Stamping and Die Cutting Machine

FOB Reference Price:Get Latest Price
  • 1 - 2 Units
    US $21200.00
  • >=3 Units
    US $16800.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Hot foil Stamping and Die Cutting Machine
Computerized:
No
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
OEM
Model Number:
HSC-568II-30T
Voltage:
need to inquire
Power(W):
7800w
Dimension(L*W*H):
780mm*540mm ( Bronzing area )
Weight:
need to inquire
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Supplier:
BOWAY
Info:
automatic worktable Hot foil Stamping and Die Cutting Machine
Modle No.:
HSC-568II-30T
Bronzing area:
780mm*540mm
Worktable area:
980mm*640mm
Stroke of the worktable:
250mm
Max working eight:
100mm
Bronzing pressure:
1-30T
Temperature control:
1-300℃
Airsupply pressure:
0.8-1.2mpa
Supply Ability
Supply Ability:
50 Unit/Units per Month
Packaging & Delivery
Packaging Details
Professional Packing,please confirm with our sales manager.Thank you!
Port
Ningbo or Shanghai

since1996BANNER780

******The pricture and specifications are subject to change without prior notice. ******

******Any question, please confirm with our sales manager.******

Welcome  to  Boway

Core Competence

HTB1SG5WGVXXXXbuXFXXq6xXFXXXy

We provide more than 300 kinds of office equipment for your need

(You may click the following picture to see more)


How  to  Choose  Your  Right  Items?

Product Uses
Hot foil Stamping and Die Cutting
1. Creasing
PE Creasing , Notebook Creasing , Thermo Discolor Leather Creasing , Aluminium-plastic Panel Creasing , Hardcover Creasing ,

Creasing and Keep Press , Creasing and Keep Press to Color Change ,etc.

2. Die Cutting

PVC Die Cutting , Linen Die Cutting ,etc.

3. Hot stamping / Bronzing

PVC Hot Stamping , PVC Overlay Hot Stamping , UV Surface Hot-stamping , White Board Hot Stamping , Packing Box Hot Stamping ,

Notebook Hot Stamping , Adhesive Sticker Hot Stamping , Gloss Film Hot Stamping , Aluminium-plastic Hot Stamping , Brown Paper Hot Stamping , Wax-cloth Hot Stamping , Rubber Hot Stamping , etc.

4. Embossing

Embossing and Hot Stamping , Operating Panel Embossing , etc.

5. Branding

Wooden Board Branding , Foam Branding , Flannelette Branding , Wooden Box Branding

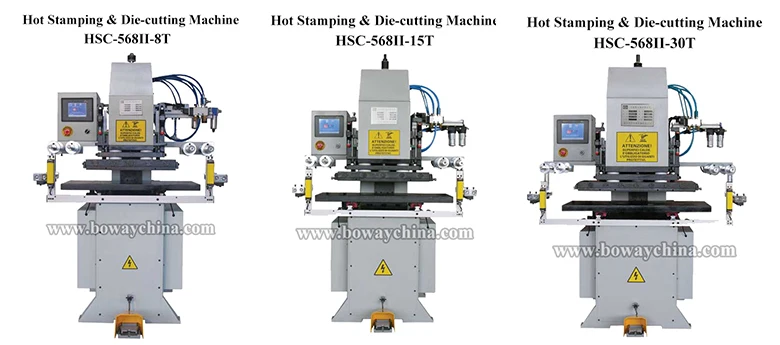

Appearance
HSC-568II .jpg
Specification Param



Model No.HSC-568II-8T HSC-568II-15THSC-568II-30T
Bronzing area510mm*390mm590mm*440mm780mm*540mm
Worktable area780mm*490mm880mm*540mm980mm*640mm
Stroke of the worktable160mm200mm250mm
Max working eight100mm100mm100mm
Bronzing pressure1-8T1-15T1-30T
Temperature control1-3001-3001-300
Airsupply pressure0.8-1.2mpa0.8-1.2mpa0.8-1.2mpa
Power4800w5800w7800w

Optional items :

* HMI electrical control system

* control system of the automatic moving in and out of the worktable

* footswitch & safety light screens electrical control system

* ordinary electrical control system

* manual control system of the moving in and out of the worktable

* double touching button switch control system

* beehiveboard.boardlock

Advantages Details

Hot Stamping and Die-cutting Machine Performance Characteristics:

1. It adopts the German technology---air over hydraulic reinforcement driving system so that we can make two-stroke and three-stroke free switching. It is energy-saving and high efficiency.

2. It adopts imported main driving linear guideway, the worktable follow the linear guideway to ensure the high-precision motion of the machine.

3. It has a versatility of bronzing and die-cutting many materials and different types of products.

4. It can adjust the holding time and pressure of bronzing to achieve many results. It has a wonderful result of bronzing embossment and heavy pressure mark.

5. The worktable can move in and out automatically. The automatic speed and automatic continuous work can both be adjusted. Safety device is equipped so it is safe and reliable.

6. Electrical system is designed according to CE standard, the latest HMI, digital control, easy to operate and can be upgraded.

7. The foil length and step numbers can be adjusted as you wish, the bronzing foil has a high utility factor. The foils are sent by two groups so the work efficiency is high.

Package & Shipment

Trading Terms

Terms of paymentT/T, L/C, Westion Union.
Terms of tradeFOB, CFR, CIF
Mode of transportationBy Sea,  By Air
Port of shipmentShanghai or Ningbo
Rerfence date of delivery

About 15 days, Instant supply

of hot-selling products

About Shipment

Certificate of Fumigation
Certificate of Original

CO, FORM A, FORM F, FORM E etc.

Guarantee customer to import goods

at the preferential tariff rate

Certificate of Inspection
Documents Authentication



_

After-Sales Service

I. Agents Tranining

II. Warranty

We provide one-year limited warranty for all machines from the date of purchase

1. Our warranty covers only those defects which arise as a result of normal use of the product, and the bellows not apply to any:

u       Improper or inadequate maintenance

u       Misusage and mishandling

u       Damaged by a wrong voltage use

u      Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)

2. What is the repair, exchange & refund policy?

Exchange and refund only on big defective units (beyond repair).For buyers' used machines, we only can support repair service.

Repair: We provide free spare parts (just include the main board and motor) within the warranty period. Buyer should provide serial number and photos of defective machines, but buyer should pay the shipment charges and return us the broken parts.

Exchange: If you reported problem to us in one month on arrival of the machine, we accept the exchange. Buyer needs pay the ship back sea freight and the sea freight for new machine.

Refund: If you reported problem to us in one week on arrival of machines, we accept the refund, but we only refund you the payment after receiving the returned goods.

3. What about when one year warranty over time?

We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.

4. How to support you when you purchase our machine in first time?

When you meet the problem of our machine under the situation that you are not familiar with our machines.

Do not worry, we can offer:

u        User Manual in English

u        Operation Video

u         Support on-line

u        You can send your technician to our factory to attend the skill training.

Customers  and  Us

()FAQ

1.What’s the product range?

   Post press machine,such as Perfect glue binder, paper cutter, Roll laminator, UV coator machine and some small office equipment.

2.Are you a manufacture?

   Yes, we are in Hangzhou which middle of shanghai and Ningbo

3.What is the minimum quantity for order?

    5 pcs or 10000 USD for order.

4.Do you have stock product to sell?

    Maybe , It’s depend on which machine ,you like?

5.Do you inspect the finished products?

    Yes, Each step of production products will be camed out inspection by QC department before shipping.

6.How do you ship the finished products?

    By Sea

   By Plane

   By courier, TNT , DHL, Fedex, UPS Etc

7.What’s the Payment term?

    Payment term: T/T before shipment.

    We accept payment via the Paypal /Western union/TT, you can choose as you like.

8.What’s the delivery time?

    Within 15 days after get the payment
